1. Antenna Size (MD×TD): 52×15mm
2.Tape Width(Transverse Direction): 17mm
3.Tape Pitch(Machine Direction): 54mm

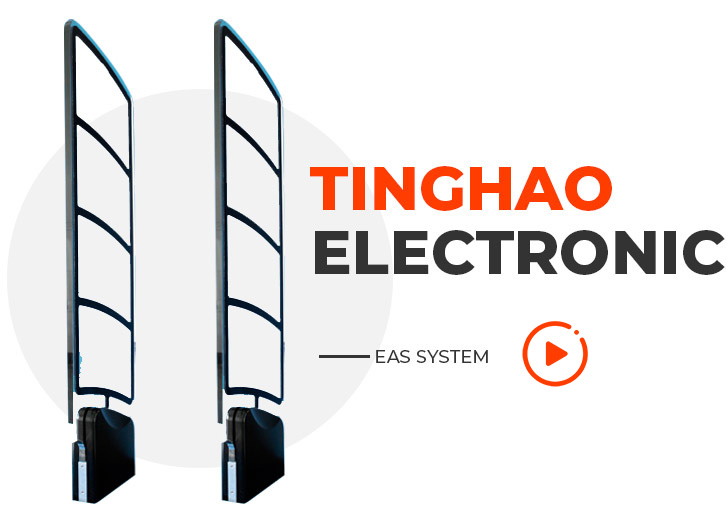

TH-RFID002 HF security gate is an anti-theft alarm device specially designed for domestic and foreign public and college libraries. This product can quickly detect electronic tags in three dimensions in the sensing area of the antenna. This product supports the electronic tags of multiple manufacturers that comply with the ISO15693 standard. It supports two modes of active alarm and passive alarm. In active alarm mode, it supports AFI, EAS and EAS + AFI alarm. This product can be widely used in the entrance / exit for anti-theft in libraries / archives and brand clothing stores, etc.

1. Frequency : 58khz
2. Chips : 3 chips
3. Size : 44.91mm（±0.3mm）* 6.0mm（±0.3mm）
4. Thickness : 1.88mm（±0.3mm）
275*200*100mm

1.Label size : 147x6mm
2.With 9.5cm tail at both ends , the total length is 337mm
3.The RFID chip is UHF , it can compatible with all UHF RFID system
4.The packing is 500pcs/box
5.The label can compatible with all EM system , UHF RFID system or EM+UHF RFID system

1. Frequency : 13.56 MHZ
2. Size : 50x50mm
3. Chip : NXP I CODE 2/ NXP I CODE SLI/ NXP I CODE SLIX
4. Protocol : ISO15693

1. Frequency : 13.56 MHZ
2. Size : 50x50mm
3. Chip : NXP I CODE 2/ NXP I CODE SLI/ NXP I CODE SLIX
4. Protocol : ISO15693

1. Operating distance: 1.2-1.5m
2. Color: Black, white, gray or customized
3. Minimum order quantity: 20000PCS
4. The RF soft label is disposible, light and convenience used, it is compatible with all 8.2MHz system

Product Description: RF-40x40
Frequency : 8.2MHZ
Circuit Color : Silver
Label Dimensions(WxH): 40x40mm
Distance Between Labels : 3.0mm
Liner Width(L): 40mm
Inner Core Diameter(IC): 76mm
Face Sheet: Coated Paper
Adhesive: Permanet General Purpose
Label per roll: 1000pcs
Label per carton : 20000pcs
​Weight Carton : 11kg

1.Frequency : 58KHZ
2.Good quality ,strong sensortivity
3.eas am barcode label , AM DR labels ,soft label,made in China .
4.Compatible with AM system
5.Package : 5000pcs /box ,20000pcs / carton
6.Made in China ,Same function with Sersormatic DR label

1. Our EM label is based on Cobalt, which have a better De/Reactivate effect.

2. Our EM label can compatible with 3M, Certus, Checkpoint, Dialoc system.

3. We have 10x40mm, 10x51mm, 10x63mm, 10x90mm transpaarent/barcode label

4. Our label is 1000pcs in a roll.

1. EM CD/DVD Label, CD/DVD security label.
2. Can compatible with all wave system such as 3M, CERTUS, CHECKPOINT, DIALOC etc.
